AIR & GAS FILTRATION SEPARATION SOLUTIONS

Home Page > PRODUCTS > Gas Generators > Membrane Nitrogen Generator >

Membrane Nitrogen Generator

Product Information

Fields of Application
» Maritime
» Open seas
» FPSO
» LNG/LPG
» Chemical tankers
» Oil drilling ships

Advantages
» 60%; minimum 10 years of savings
» Easy installation, operation and maintenance
» 50% less space occupied
» 95-99,9% Purity
» Design according to customer’s choice
» -70°C PDP dry nitrogen gas
» Production in European standards
» Installation at hazardous places
» Steel or aluminum housing for rough environments

Membrane Nitrogen Generator - Brochure

TECHNICAL DATA

PURITY CLASSES FOR DUST CONCENTRATION

Class a	Maximum particle concentration in a metric cube According to diameter db
Class a	0,1 µm < d ≤ 0,5 µm	0,5 µm < d ≤1,0 µm	1,0 µm < d ≤ 5,0 µm
0	Stricter rules according to the manufacturer or end user
1	≤20.000	≤400	≤10
2	≤400.000	≤6.000	≤100
3	Not specified	≤90.000	≤1000
4	Not specified	Not specified	≤10000
5	Not specified	Not specified	≤100000
Class	Mass concentration Cp mg/m³
Class	Mass concentration Cp mg/m³
6	0< Cp ≤5
7	5< Cp ≤10
x	Cp >10

Class	Concentration of total oil (liquid, aerosol and vapur) mg/m³
0	As specified by the equipment user or supplier and more stringent than class 1
1	≤ 0,01
2	≤ 0,1
3	≤ 1
4	≤ 5
X	> 5

COMPRESSED AIR PURITY CLASSES FOR TOTAL OIL

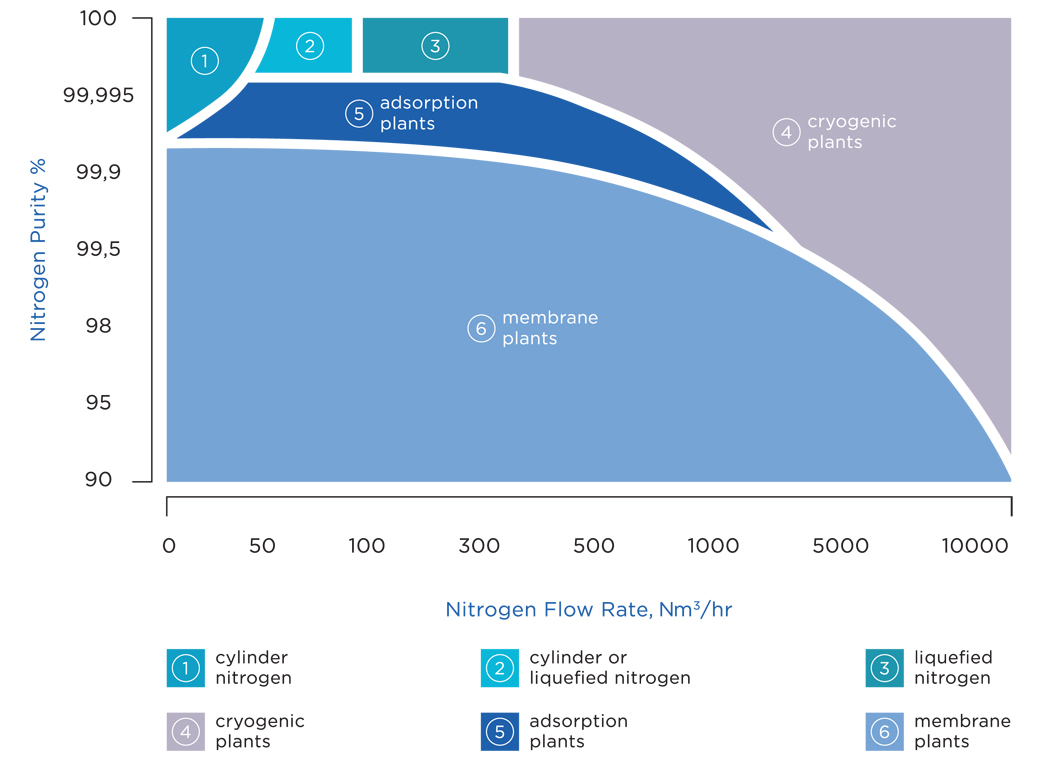

EFFICIENCY ZONES FOR PSA, MEMBRANE AND CRYOGENIC PLANTS
